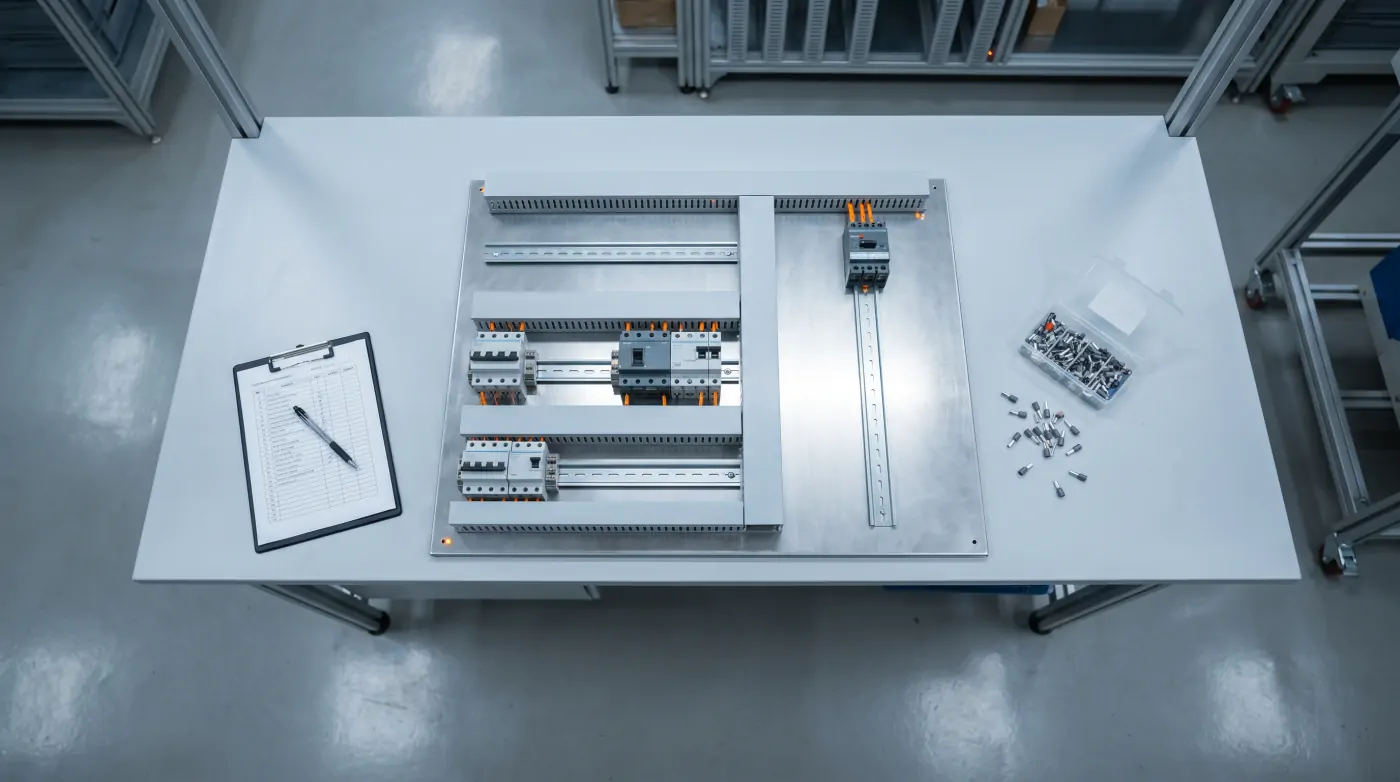

Why Panel Quality Affects the Whole Plant
An automation project is only as reliable as the panel that supports it. Poor enclosure layout, undersized components, weak labeling, and rushed testing can create future downtime even when the PLC program is good.
That is why panel manufacturing should be treated as an engineering discipline, not just an assembly task.
Start With the Application
Before any fabrication begins, the panel team should define:
- Incoming supply details
- Load list
- Control philosophy
- Environmental conditions
- Required protections
- Field device count
- Communication needs
- Space for future expansion
Without this, the panel may become crowded, difficult to service, or impossible to expand later.
Core Design Checklist
Enclosure Selection
Choose an enclosure suitable for heat, dust, washdown, and operating environment. Service access and cable entry should be considered early.
Segregation and Layout
Keep power wiring and low-level control wiring separated. Provide clean wire routing, terminal accessibility, and room for maintenance tools.
Component Selection
Use properly rated breakers, contactors, overloads, relays, power supplies, PLC hardware, and communication devices.
Heat Management
Check thermal loading. Drives, power supplies, and transformers can raise enclosure temperature quickly if ventilation is ignored.
Labeling
Every device, terminal, and wire should be consistently labeled. This directly affects troubleshooting speed later.
Testing Checklist Before Dispatch
Every industrial panel should pass structured testing before it reaches site:
- Visual inspection
- Tightness verification
- Insulation and continuity checks
- I/O verification
- PLC power-up validation
- Interlock simulation
- HMI communication test
- Drawing and tag cross-check
If VFDs are included, commissioning strategy should align with VFD Energy Saving in Industrial Plants so field startup is smoother.
Documentation You Should Not Skip
The panel package should include:
- Single-line diagram
- General arrangement drawing
- Schematic wiring
- Terminal schedule
- Bill of materials
- PLC I/O list
- Cable schedule where required
When this documentation is weak, site commissioning becomes slower and future modification risk increases.
Maintenance-Friendly Design Matters
The best panel is not only safe on day one. It stays readable after years of operation.
Maintenance-friendly practices include:
- Spare terminals
- Clear ferruling
- Standardized tag names
- Accessible device spacing
- Structured PLC addressing
That same discipline also makes software work easier, especially when applying PLC Programming Basics for Industrial Automation.
Final Takeaway
Industrial panel manufacturing should support safety, uptime, and long-term serviceability. A well-designed panel reduces commissioning time, simplifies maintenance, and creates a stronger base for automation growth.
